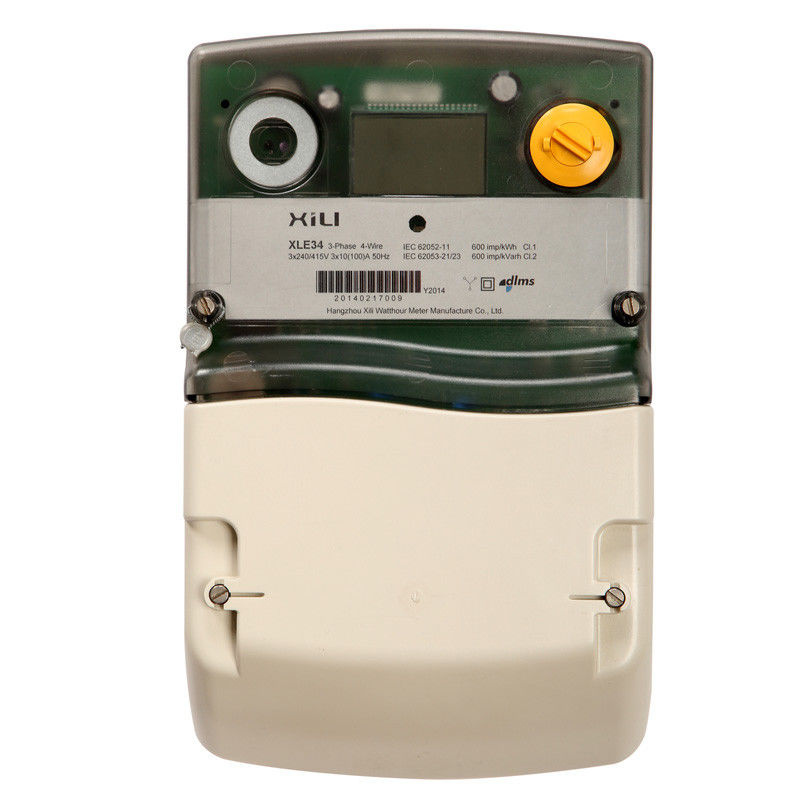

Three Phase Four Wire Multirate Watt Hour Meter / KWH Meters for Residential

Three Phase Four Wire Multirate Watt Hour Meter / KWH Meters for Residential
Three Phase Four Wire Multirate Watt Hour Meter / KWH Meters for Residential Three Phase Four Wire Multirate Watt Hour Meter / KWH Meters for Residential

Large Image :  Three Phase Four Wire Multirate Watt Hour Meter / KWH Meters for Residential Get Best Price

Product Details:

Place of Origin: China
Brand Name: Xili
Certification: IEC, MID
Model Number: XLE34 Type 120

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Export carton
Delivery Time: 50 days
Payment Terms: L/C
Supply Ability: 2 million per year
Detailed Product Description
High Light:

electricity smart meter

,

electric power meter





Three phase Four wires Multirate Watt Hour Meter / KWH Meters for Residential





Quick Detail:



• Up to six tariff rate registers

• Power quality value measurement

• Maximum Demand for each tariff rate

• Internal real time clock

• Optional Display readable without mains power (RWP)

• Magnetic immunity with optional magnetic event detection and recording



Description:



The XLE34 Type120 meter with internal real-time clock is a compact meter offering cost-effective, complex tariff functionality with enhanced features. An integrated, flexible programmable management capacity gives full Time Of Use (TOU) metering, eliminating the need for an external timing device.

With a modern design and 10 year certification life, the small and compact XLE34 Type120 offers significant additional operational benefits over existing meter types.





Applications:



Three-phase Four-wire, direct connected energy meter for residential applications.





Specifications:



Type

Three-phase Four-wire, direct connected energy meter

Reference voltage (Un)

3 x 230/400 Volts AC (other voltages available on request)

Reference Frequency (Fr)

50 Hz or 60 Hz

Extended Operating voltage range

80%-115% Un

Basic Current (Ib)

5A, 10A

Maximum Current (Imax)

Up to 100A

Short-circuit ≤ 10 ms

30 Imax

Measuring Accuracy

Class 1

Starting current

0.4% Ib

Burden

≤10VA,1.8W

Protective Class

Class II (double insulated) IEC 62052-11

Burden

≤10VA,1.8W

Operation temperature rage

-20℃~+55℃

Storage temperature rage

-25℃~+60℃

Life span

10 years

Reference standard

IEC 62052-11; IEC 62053-21

Dimension

275x168x76mm





Competitive Advantage:



Features



• Up to six tariff rate registers

• Power quality value measurement

• Maximum Demand for each tariff rate

• Internal real time clock

• Optional Display readable without mains power (RWP)

• Magnetic immunity with optional magnetic event detection and recording



User Benefits

• Class 1 or 2 (IEC), Class A or B (MID) accuracy

• 3 x 220-240V/380-415V 50Hz reference voltage/frequency

• 5A, 10A, 15A basic current, 40A, 60A 100A maximum current

• Optional pulse output (IEC62053-31) or serial data output

• Flexible tariff structure
