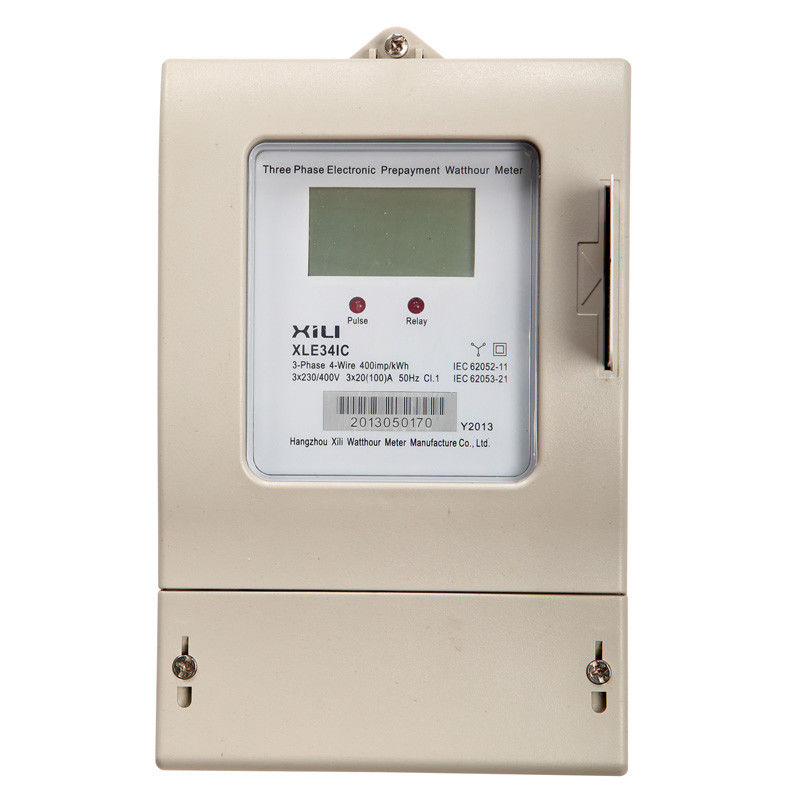

Electrical Prepaid Energy Meters / electricity prepayment metering with IC card

Electrical Prepaid Energy Meters / electricity prepayment metering with IC card
Electrical Prepaid Energy Meters / electricity prepayment metering with IC card Electrical Prepaid Energy Meters / electricity prepayment metering with IC card

Large Image :  Electrical Prepaid Energy Meters / electricity prepayment metering with IC card Get Best Price

Product Details:

Place of Origin: China
Brand Name: Xili
Certification: IEC, MID
Model Number: XLE12KP

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Export carton
Delivery Time: 50 days
Payment Terms: L/C
Supply Ability: 3 million per year
Detailed Product Description
High Light:

prepaid card energy meter

,

prepaid kwh meter





 Electrical Prepaid Energy Meters / electricity prepayment metering with IC card





Quick Detail:



The XLE34IC is the latest evolution in electricity prepayment metering from XILI.

The XLE34IC utilizes the well-proven IC card technology for one-way credit and debt management.

With a modern design and 10 years certification life, the compact XLE34IC offers significant additional operational benefits over existing meter types.





Description:



Meter status and diagnostic indicators

The meter includes a LED status indicator. This allows a technician to view the operational status of the meter without the need for specialized interrogation tools or having to gain access to the consumer’s premises.



LCD display on the meter



The XLE34IC meter model is fitted with a large clear display to enable field staff to read the meter parameters. This meter can be configured at the time of manufacture to show total kilowatt-hours consumed to date as a running total, while consumers are able to see the remaining kilowatt-hours.



Easy and Secure Data Transfer



Data transfer from a Point of Sale is made via an IC card highly encrypted.





Applications:



Three-phase Four-wire, direct connected energy meter for residential applications.





Specifications:


Type

Three-phase Four-wire, direct connected energy meter

Reference voltage (Un)

3 x 230/400 Volts AC (other voltages available on request)

Reference Frequency (Fr)

50 Hz or 60 Hz

Extended Operating voltage range

70%-115% Un

Basic Current (Ib)

5, 10 A

Maximum Current (Imax)

Selectable 40, 60, 80A

Short-circuit ≤ 10 ms

30 Imax

Measuring Accuracy

Active energy to IEC 62053-21 class 1

 (Higher rating available on request)

Starting current

0.4% Ib

Burden

≤10VA,1.8W

Protective Class

Class II (double insulated) IEC 62052-11

Operation temperature rage

-20℃~+55℃

Storage temperature rage

-25℃~+60℃

Life span

10 years

Reference standard

IEC 62052-11; IEC 62053-21

Dimension

228mm(H) × 144mm(W) × 72mm(D)





Competitive Advantage:



Features



  •  Compact prepayment meter design, with BS/DIN layout
  •  Quick and easy to install using existing household wiring
  •  Proven IC card technology
  •  Prepayment or credit metering modes of operation
  •  Language independent user interface
  •  LCD display on the meter for field technicians
  •  Diagnostic LED’s on the meter
  •  IEC 62052-11, IEC 62053-21 compliant



User Benefits



For ease of use, all XLE34IC meters include a LED consumption rate indicator, status light showing status of the contactor, indication of consumption and a user friendly LCD.

The acceptance or rejection of an IC card is shown on the LCD.
