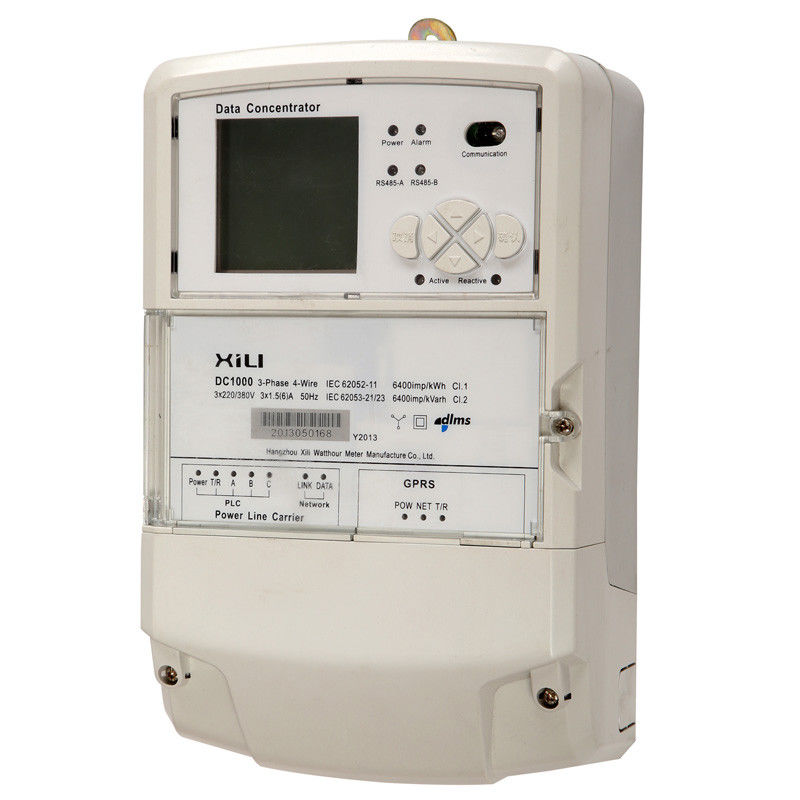

Four Wire electrical Three Phase energy meter with High Precision , Industrial Use

Four Wire electrical Three Phase energy meter with High Precision , Industrial Use
Four Wire electrical Three Phase energy meter with High Precision , Industrial Use Four Wire electrical Three Phase energy meter with High Precision , Industrial Use

Large Image :  Four Wire electrical Three Phase energy meter with High Precision , Industrial Use Get Best Price

Product Details:

Place of Origin: China
Brand Name: XILI
Certification: IEC;MID
Model Number: DC1000

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: Export Standard Seaworthy Packing
Delivery Time: 30 Days
Payment Terms: T/T; L/C
Supply Ability: 1 million per year
Detailed Product Description
High Light:

three phase electricity meter

,

three phase kwh meter





Three Phase Four Wire electrical energy meter with High Precision , Industrial Use





Quick Detail:



•    Class 1 or 2 accuracy

•    Single rate drum, 5+1 digit (10Wh) resolution register

•    110-120V or 220-240V 50-60Hz reference voltage/frequency

•    5A, 10A, 15A, 20A basic current

•    60A, 100A maximum current

•    Forward and reverse energy shown by a single LED





Description:



The DC1000 combines modern metering technology with a proven electromechanical drum register for outstanding performance over a long life. Specifically designed to provide cost-effective, entry-level functionality for customer revenue metering in markets for both symmetrical (BS, UTE) and asymmetrical (DIN) connection standards.





Applications:



three-phase four-wire, direct connected energy meter for industrial applications.





Specifications:



Type

Three-phase Four-wire, direct connected energy meter

Reference voltage (Un)

230 Volts AC (other voltages available on request)

Reference Frequency (Fr)

50 Hz or 60 Hz

Extended Operating voltage range

80%-115% Un

Basic Current (Ib)

5A, 10A

Maximum Current (Imax)

Up to 100A

Short-circuit ≤ 10 ms

30 Imax

Measuring Accuracy

Class 1

Starting current

0.4% Ib

Burden

≤10VA,1.8W

Protective Class

Class II (double insulated) IEC 62052-11

Burden

≤10VA,1.8W

Operation temperature rage

-20℃~+55℃

Storage temperature rage

-25℃~+60℃

Life span

10 years

Reference standard

IEC 62052-11; IEC 62053-21

Dimension

186.25x126x56mm





Competitive Advantage:



Features



•    Class 1 or 2 accuracy

•    Single rate drum, 5+1 digit (10Wh) resolution register

•    110-120V or 220-240V 50-60Hz reference voltage/frequency

•    5A, 10A, 15A, 20A basic current

•    60A, 100A maximum current

•    Forward and reverse energy shown by a single LED



User Benefits



•    Compact, lightweight sealed-for-life design

•    Long-life electromechanical drum-register

•    Reduced environmental burden
