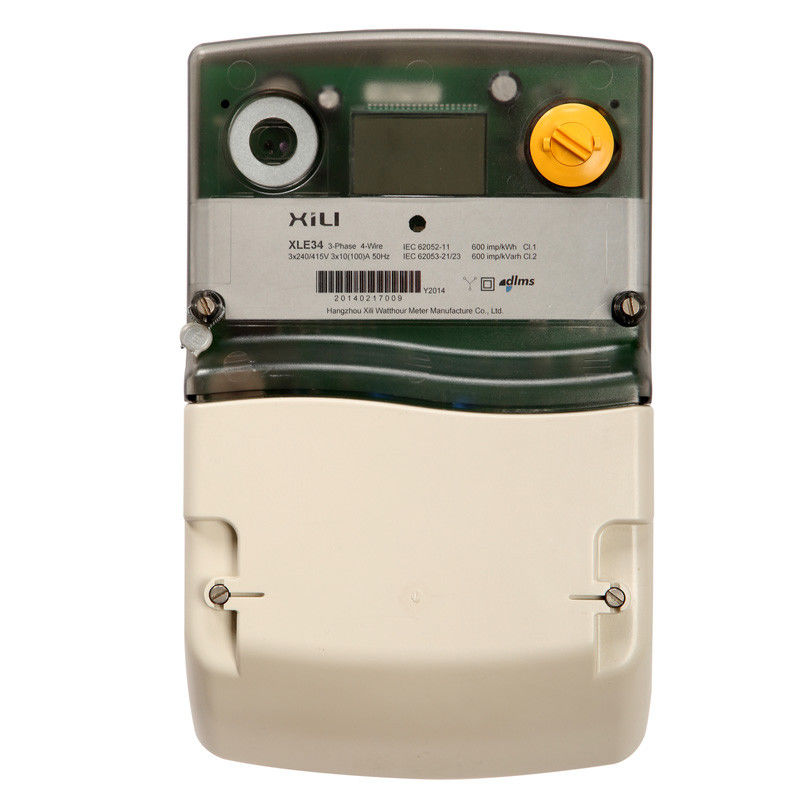

Multi tariff direct Three Phase Energy Meter / KWH Meters 3 wires or 4 wires
Quick Detail:
• Up to six tariff rate registers
• Power quality value measurement
• Maximum Demand for each tariff rate
• Internal real time clock
• Optional Display readable without mains power (RWP)
• Magnetic immunity with optional magnetic event detection and recording
Description:
The XLE34 Type120 meter with internal real-time clock is a compact meter offering cost-effective, complex tariff functionality with enhanced features. An integrated, flexible programmable management capacity gives full Time Of Use (TOU) metering, eliminating the need for an external timing device.
With a modern design and 10 year certification life, the small and compact XLE34 Type120 offers significant additional operational benefits over existing meter types.
Applications:
Three-phase Four-wire, direct connected energy meter for residential applications.
Specifications:
Type |
Three-phase Four-wire, direct connected energy meter |
Reference voltage (Un) |
3 x 230/400 Volts AC (other voltages available on request) |
Reference Frequency (Fr) |
50 Hz or 60 Hz |
Extended Operating voltage range |
80%-115% Un |
Basic Current (Ib) |
5A, 10A |
Maximum Current (Imax) |
Up to 100A |
Short-circuit ≤ 10 ms |
30 Imax |
Measuring Accuracy |
Class 1 |
Starting current |
0.4% Ib |
Burden |
≤10VA,1.8W |
Protective Class |
Class II (double insulated) IEC 62052-11 |
Burden |
≤10VA,1.8W |
Operation temperature rage |
-20℃~+55℃ |
Storage temperature rage |
-25℃~+60℃ |
Life span |
10 years |
Reference standard |
IEC 62052-11; IEC 62053-21 |
Dimension |
275x168x76mm |
Competitive Advantage:
Features
• Up to six tariff rate registers
• Power quality value measurement
• Maximum Demand for each tariff rate
• Internal real time clock
• Optional Display readable without mains power (RWP)
• Magnetic immunity with optional magnetic event detection and recording
User Benefits
• Class 1 or 2 (IEC), Class A or B (MID) accuracy
• 3 x 220-240V/380-415V 50Hz reference voltage/frequency
• 5A, 10A, 15A basic current, 40A, 60A 100A maximum current
• Optional pulse output (IEC62053-31) or serial data output
• Flexible tariff structure
