| Reference Voltage (Un): | 230 Volts AC (other Voltages Available On Request) | Reference Frequency (Fr): | 50 Hz Or 60 Hz |
|---|---|---|---|
| Extended Operating Voltage Range: | 80%-115% Un | Basic Current (Ib): | 5A, 10A |
| Maximum Current (Imax): | Up To 100A | Short-circuit ≤ 10 Ms: | 30 Imax |
| Measuring Accuracy: | Class 1 | Starting Current: | 0.4% Ib |

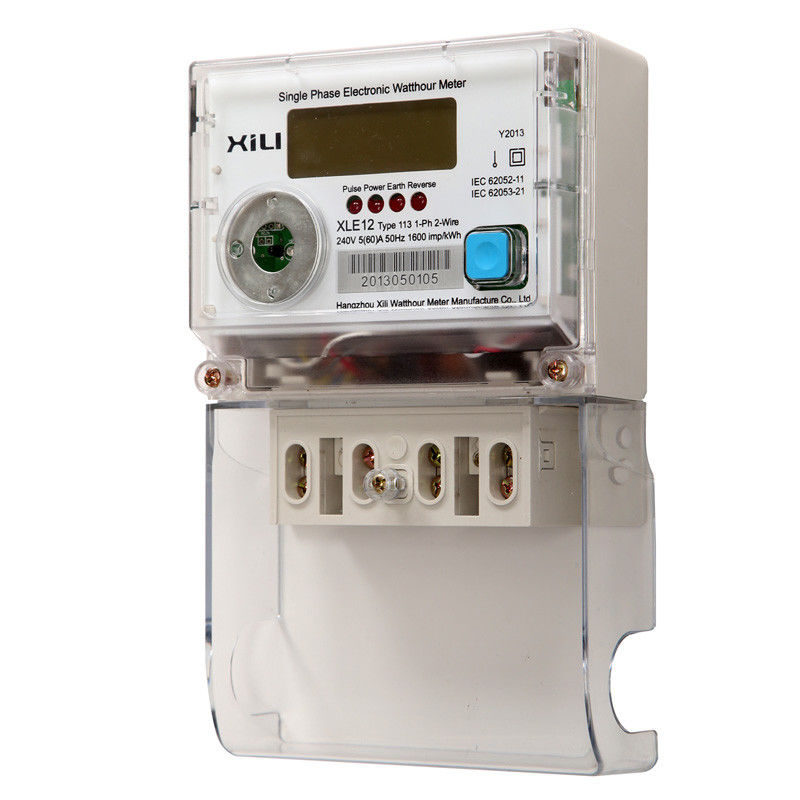

Load Profile Multifunction Energy Meter for Residential applications
| Type | Single-phase 2-wire, direct connected energy meter |
| Reference voltage (Un) | 230 Volts AC (other voltages available on request) |
| Reference Frequency (Fr) | 50 Hz or 60 Hz |
| Extended Operating voltage range | 80%-115% Un |
| Basic Current (Ib) | 5A, 10A |
| Maximum Current (Imax) | Up to 100A |
| Short-circuit ≤ 10 ms | 30 Imax |
| Measuring Accuracy | Class 1 |
| Starting current | 0.4% Ib |
| Burden | ≤10VA,1.8W |
| Protective Class | Class II (double insulated) IEC 62052-11 |
| Burden | ≤10VA,1.8W |
| Operation temperature rage | -20℃～+55℃ |
| Storage temperature rage | -25℃～+60℃ |
| Life span | 10 years |
| Reference standard | IEC 62052-11; IEC 62053-21 |
| Dimension |
176mm(H) × 124mm(W) × 45mm(D) |
Quick Detail:
• Cost-effective meter
• Easy integration into existing and future reading systems
• Reduced data collection cost because of high data transmission rate
• Less regular intervals necessary to synchronize device clock
• Easy installation
Description:
XLE 12 130 multifunctional load profiler is the latest advanced design of Xili Metrology.This cost-effective electricity meter is equipped with active/passive measurement, complex tariff functions and enhanced functions such as load analysis, tamper-proofing, and logging.The design complies with International Electrotechnical Commission and Middle East standards (applicable to European countries).The meter measures the active and reactive energy in both directions.Direct connection meter with rated current up to 100A.The instrument allows recording of load profiles in up to 4 channels and includes various logs.Several instantaneous values can be used for simpler installation diagnosis.The meter provides a complete multi-configuration billing calendar to respond to all new management needs after the market is deregulated.The data communication through the optical port or serial port (RS485) interface can be completed using the standard protocol acc.IEC62056-21 (formerly IEC1107) or COSEM/DLMS.
Applications:
Single-phase 2-wire, direct connected energy meter for residential applications.
Competitive Advantage:
Features
• Cost-effective meter
• Easy integration into existing and future reading systems
• Reduced data collection cost because of high data transmission rate
• Less regular intervals necessary to synchronize device clock
• Easy installation
User Benefits
• Voltage Ranges: up to 240V
• Current Ranges: 5 to 60 or 5 to 100A for DC
• Accuracy: Direct connected: Class 1 (IEC 62053-21);Reactive energy: Class 2 (IEC 62053-23)
• Load profile record with up to 4 channels; two logbooks (one certifiable)
• Optical port and serial port (RS485) interface
• Device clock with high accuracy
