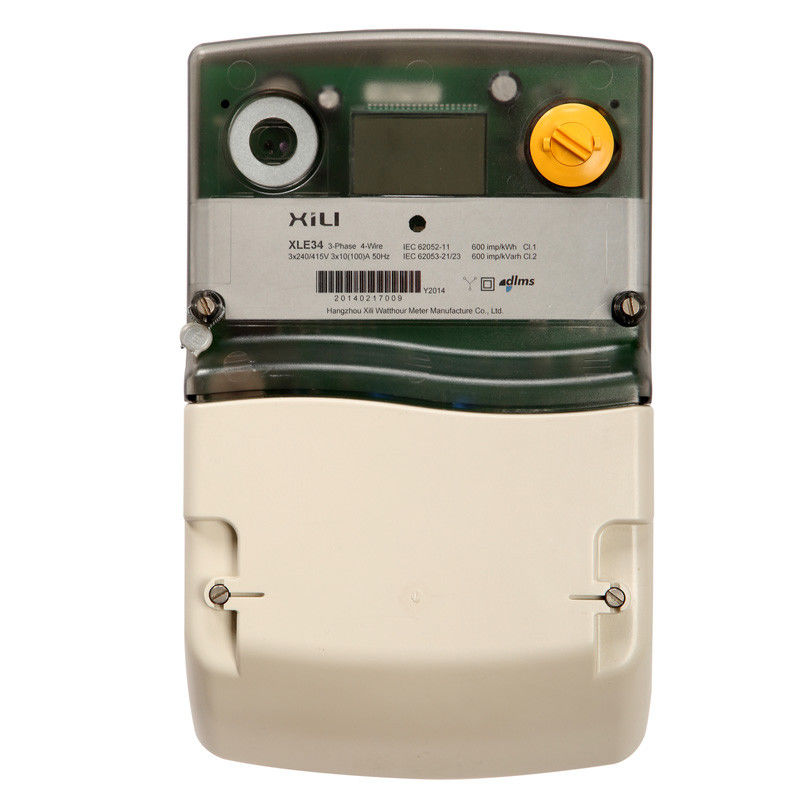

OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer

OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer
OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer

Large Image :  OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer Get Best Price

Product Details:

Place of Origin: China
Brand Name: Xili
Certification: IEC, MID
Model Number: XLE34 Type 120

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Export carton
Delivery Time: 50 days
Payment Terms: L/C
Supply Ability: 2 million per year
Detailed Product Description
High Light:

three phase electricity meter

,

smart electric meters





OEM Custom Intelligent three phase energy meter with Multi tariff Current Transformer





Quick Detail:



• Up to six tariff rate registers

• Power quality value measurement

• Maximum Demand for each tariff rate

• Internal real time clock

• Optional Display readable without mains power (RWP)

• Magnetic immunity with optional magnetic event detection and recording





Description:





The XLE34 Type120 meter with internal real-time clock is a compact meter offering cost-effective, complex tariff functionality with enhanced features. An integrated, flexible programmable management capacity gives full Time Of Use (TOU) metering, eliminating the need for an external timing device.

With a modern design and 10 year certification life, the small and compact XLE34 Type120 offers significant additional operational benefits over existing meter types.





Applications:



Three-phase Four-wire, direct connected energy meter for residential applications.





Specifications:



Type

Three-phase Four-wire, direct connected energy meter

Reference voltage (Un)

3 x 230/400 Volts AC (other voltages available on request)

Reference Frequency (Fr)

50 Hz or 60 Hz

Extended Operating voltage range

80%-115% Un

Basic Current (Ib)

5A, 10A

Maximum Current (Imax)

Up to 100A

Short-circuit ≤ 10 ms

30 Imax

Measuring Accuracy

Class 1

Starting current

0.4% Ib

Burden

≤10VA,1.8W

Protective Class

Class II (double insulated) IEC 62052-11

Burden

≤10VA,1.8W

Operation temperature rage

-20℃~+55℃

Storage temperature rage

-25℃~+60℃

Life span

10 years

Reference standard

IEC 62052-11; IEC 62053-21

Dimension

275x168x76mm





Competitive Advantage:





Features





• Up to six tariff rate registers

• Power quality value measurement

• Maximum Demand for each tariff rate

• Internal real time clock

• Optional Display readable without mains power (RWP)

• Magnetic immunity with optional magnetic event detection and recording





User Benefits



• Class 1 or 2 (IEC), Class A or B (MID) accuracy

• 3 x 220-240V/380-415V 50Hz reference voltage/frequency

• 5A, 10A, 15A basic current, 40A, 60A 100A maximum current

• Optional pulse output (IEC62053-31) or serial data output

• Flexible tariff structure
